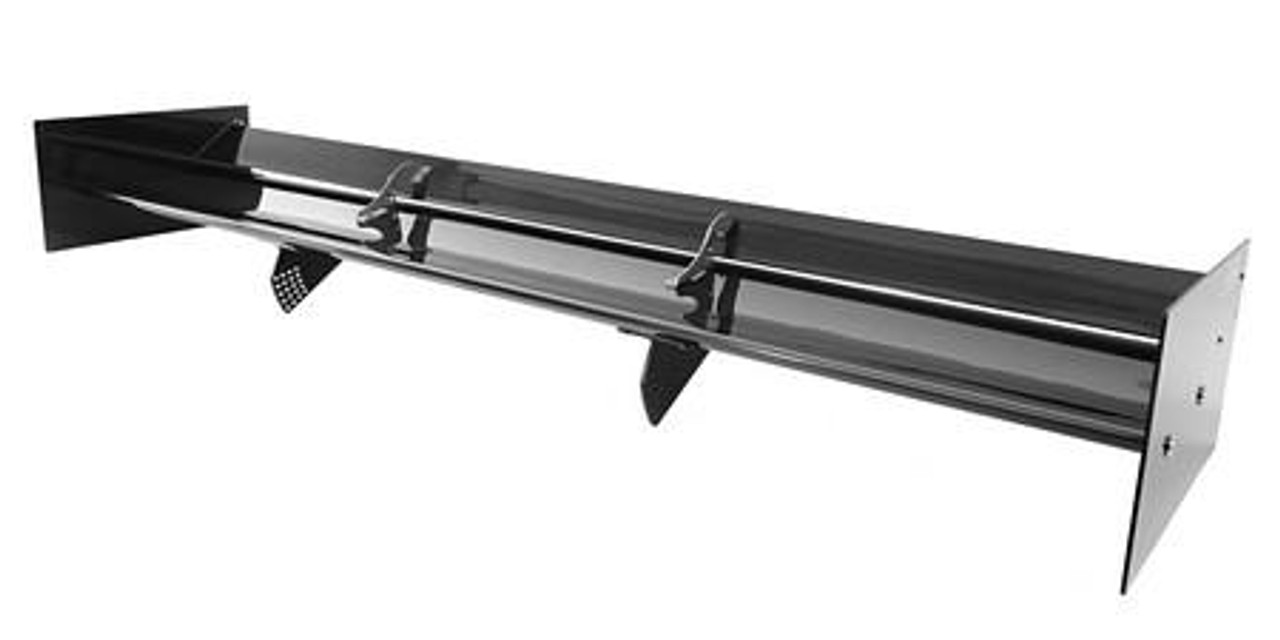

APR Performance GT-1000 Series Dual Element Wing - Swan Neck - Custom Mount Pedestals NOT Included AS-407122
APR Adjustable Wings GT-1000 Swan NeckApplication:UNIVERSAL NON APPLICATION SPECIFIC
Spanning up to 71 inches in a dual element airfoil setup, the GT-1000 Dual Element Adjustable Wing is designed for high speed racing applications and supplies extreme downforce in some of the fastest track cars in the world.
CHASSIS MOUNTING IS REQUIRED
Do not mount the APR Performance GT-1000 Adjustable Wing assembly to a vehicle trunk lid - the downforce levels can easily deform and damage even factory OEM steel trunk lids and create hazardous conditions. Pedestals are not available for the GT-1000. All customers will be required to fabricate their own, chassis-mount pedestals for their specific applications.
Although the upper brackets (the ones that are permanently attached to the bottom of the main airfoil) have a multitude of mounting holes, the main airfoil is intended to be installed and fixed at exactly one position. For proper installation, the side plates (aka end plates) are to be at exactly 0 degrees AOA relative to the ground plane. The main airfoil ends up being fixed at just under 5 degrees AOA (forward pitch) relative to the ground plane.
Computational Fluid Dynamics (CFD)
Modeled in 3D and validated using Computational Fluid Dynamics (CFD), the APR Performance GT-1000 Adjustable Wing is designed to adapt to a variety of widebody sports and touring car applications.
