BILSTEIN B8 5165 Series - 46mm Monotube Shock Absorber 25-187861

click to zoom in

Get the benefits of a remote reservoir with BILSTEIN’s universal fit 5165 shocks for custom lifted trucks and SUVs.

Features and Benefits:

  • BILSTEIN’s industry leading monotube design
  • Remote reservoir dramatically increases shock oil capacity for even greater heat dissipation and damping sensitivity
  • Special swivel banjo fittings on the reservoir hose allow for 360° of
    rotation
  • For increased wheel travel and more shaft movement, the “floating” dividing piston is located in the reservoir
  • Zinc finish with multi-layer unique BILSTEIN coating for extreme protection

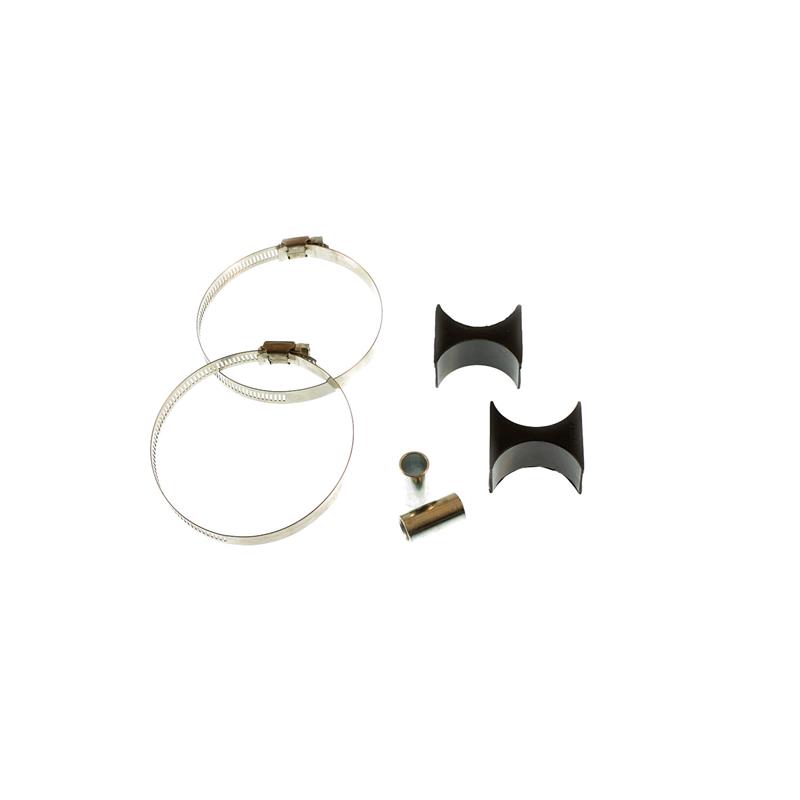

    Includes reservoir mounting kit and detailed instructions
  • Shown with optional billet aluminum reservoir mounting clamp (part #11-176015)
  • Available in 5”-14” travel lengths with various linear valvings.

Application:
  • UNIVERSAL NON APPLICATION SPECIFIC

BILSTEIN

BILSTEIN B8 5165 Series - 46mm Monotube Shock Absorber 25-187861

Write a Review
Part Number: 25-187861
Your Price: $225.00

UPC:
651860664590
Weight:
4.63 LBS
Body Design:
Smooth Body (Non-Coilover)
Body Diameter (ID):
46mm
Boot Included:
No
Compression @0.52m/s:
575
Extended Length (IN):
19.72
Extended Length (IN) Rounded:
20
Extended Length (MM):
500.9
Finish:
Zinc Plated
Internal Design:
Monotube
Lower Mount Type:
Eye 5/8in
Mount Type:
Eye-to-Eye
Optional Reservoir Clamp:
11-176015
Rebound @0.52m/s:
1600
Reservoir:
Yes
Upper Mount Type:
Eye 5/8in
