BILSTEIN

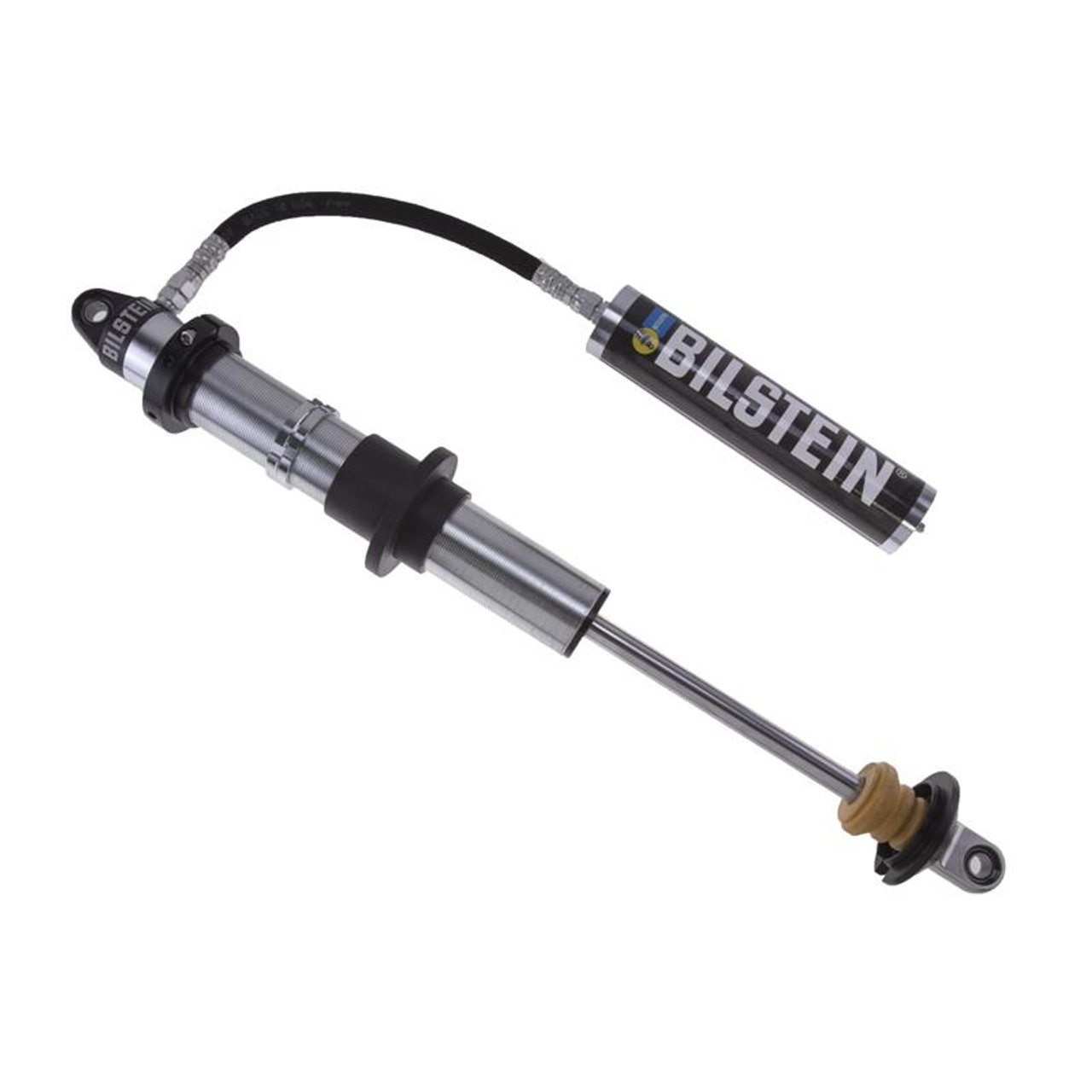

BILSTEIN B8 8125 Series - 60mm Monotube Shock Absorber 33-225531

click to zoom in

Designed for the serious off-road enthusiast. Available in multiple lengths for a wide range of custom applications, B8 8125 shocks feature the highest quality machined components for long lasting durability.

Features & Benefits:

  • Available in 60mm and 46mm monotubes
  • Available from 5” to 16” of travel
  • Threaded body with dual rate coilover hardware
  • Monotube design for fade-free performance
  • Remote reservoir for improved heat dissipation
  • High temperature seal extends life of shock
  • 22mm case hardened piston rod provides brute tensile strength while resisting sand blasting and rock chipping
  • Zinc plated to withstand harsh off-road elements
  • High temperature, size -8 hose
  • Owner rebuildable
  • Industry standard 5/8” bearing
  • All components are billet machined
  • Made in the USA

Special Notes:

  • The B8 8125 shocks use industry standard coilover springs – 60mm shock uses a 3.0” ID spring while the 46mm shock uses a 2.5” ID spring
  • BILSTEIN does not manufacture or sell coil springs for off-road use. However, most BILSTEIN off-road retailers sell springs. They can also offer advice on spring rates

Application:
  • UNIVERSAL NON APPLICATION SPECIFIC

BILSTEIN

BILSTEIN B8 8125 Series - 60mm Monotube Shock Absorber 33-225531

Write a Review
Part Number:
33-225531
MSRP:
Your Price: $604.00
Deal ends in:
Nov 27 2023, 00:00:01


Designed for the serious off-road enthusiast. Available in multiple lengths for a wide range of custom applications, B8 8125 shocks feature the highest quality machined components for long lasting durability.

Features & Benefits:

  • Available in 60mm and 46mm monotubes
  • Available from 5” to 16” of travel
  • Threaded body with dual rate coilover hardware
  • Monotube design for fade-free performance
  • Remote reservoir for improved heat dissipation
  • High temperature seal extends life of shock
  • 22mm case hardened piston rod provides brute tensile strength while resisting sand blasting and rock chipping
  • Zinc plated to withstand harsh off-road elements
  • High temperature, size -8 hose
  • Owner rebuildable
  • Industry standard 5/8” bearing
  • All components are billet machined
  • Made in the USA

Special Notes:

  • The B8 8125 shocks use industry standard coilover springs – 60mm shock uses a 3.0” ID spring while the 46mm shock uses a 2.5” ID spring
  • BILSTEIN does not manufacture or sell coil springs for off-road use. However, most BILSTEIN off-road retailers sell springs. They can also offer advice on spring rates

Application:
  • UNIVERSAL NON APPLICATION SPECIFIC
UPC:
651860754727
Availability:
This is a special order product and does not ship immediately.
Weight:
19.71 LBS
Body Design:
Threaded Body Screw Top (Coilover)
Body Diameter (ID):
60mm
Compression @0.52m/s:
1100
Extended Length (IN):
32.5
Extended Length (IN) Rounded:
33
Extended Length (MM):
825.5
Finish:
Zinc Plated
Internal Design:
Monotube
Lower Mount Type:
Eye.5x1.5in
Mount Type:
Eye-to-Eye
Optional Reservoir Clamp:
N/A
Rebound @0.52m/s:
3700
Reservoir:
Yes
Upper Mount Type:
Eye.5x1.5in
