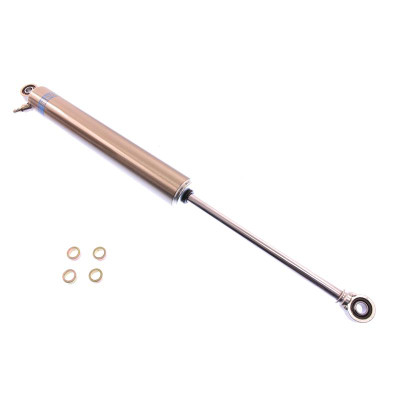

BILSTEIN M 7100 Series Shock - 46mm Monotube Shock Absorber B46-0360R

click to zoom in

The versatile M 7100 shocks are designed for stock truck and limited buggy race applications, as well as prerunner trucks, off-road and sand buggies and other recreational vehicles. Completely owner rebuildable, BILSTEIN M 7100 shocks come in remote reservoir or standard body with schrader valve fitments.

Features and Benefits:

  • Monotube gas pressure construction
  • Self-adjusting deflecting disc valving
  • 2” diameter shock body
  • High-flow piston reduces harshness
  • Choice of valvings
  • Schrader valve shocks with dividing piston
  • 8”, 10”, 12”, & 14” travel

Application:
  • UNIVERSAL NON APPLICATION SPECIFIC

BILSTEIN

BILSTEIN M 7100 Series Shock - 46mm Monotube Shock Absorber B46-0360R

Write a Review
Part Number: B46-0360R
Your Price: $249.00

UPC:
790832510692
Weight:
5.29 LBS
Body Design:
Smooth Body (Non-Coilover)
Body Diameter (ID):
46mm
Compression @0.52m/s:
780
Extended Length (IN):
25.77
Extended Length (IN) Rounded:
26
Extended Length (MM):
654.6
Finish:
Nickel Plated with Clear Powder Coat
Internal Design:
Monotube
Lower Mount Type:
1/2in Heim
Mount Type:
Eye-to-Eye
Optional Reservoir Clamp:
N/A
Rebound @0.52m/s:
2750
Reservoir:
No
Upper Mount Type:
1/2in Heim
