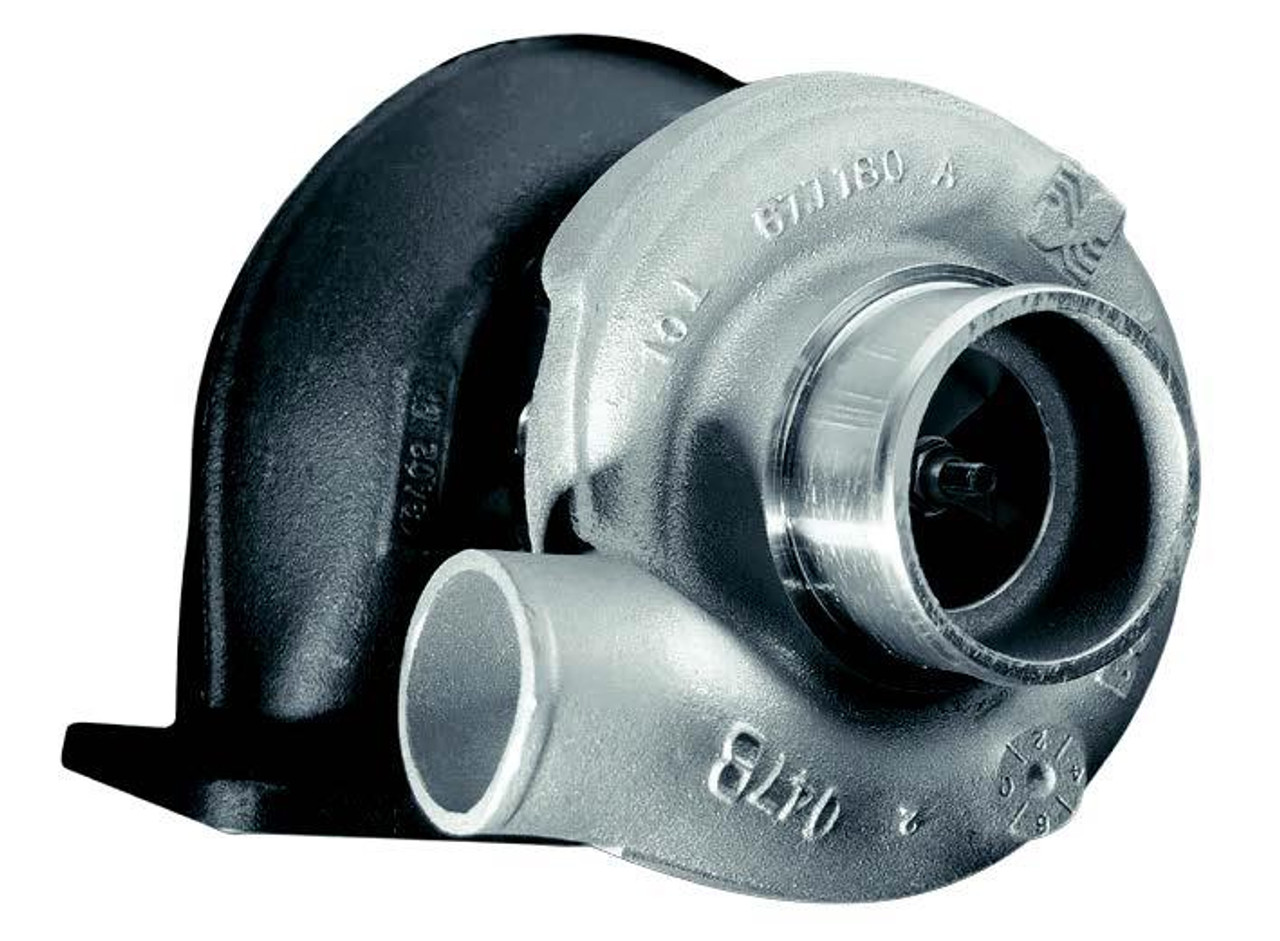

BorgWarner S200SX Complete Turbo 177258

click to zoom in

Airwerks turbochargers are designed for the competitive motorsports market as well as drivers retrofitting a naturally aspirated engine or looking for a little more performance from a factory turbocharged car.

Engineered specifically for drag racing, pulling and road racing, AirWerks turbochargers have earned a reputation as robust, brute-force induction systems. Looking for a no-frills replacement? Want to upgrade your turbocharger? Working with limited space? BorgWarner’s AirWerks turbochargers are the perfect go-to product for many applications.

With a twin hydrodynamic journal bearing design, AirWerks turbochargers feature an effective high-pressure ratio compressor stage, extended-tip technology and a high-efficiency turbine stage. The configuration provides ultra-fast response and more than 70 PSI of boost.

Airwerks S200SX Series Features

  • 220-580HP
  • Twin hydrodynamic journal bearings
  • Integrated wastegate assembly
  • Adjustable compressor and turbine housing orientation
  • Compressor cover recirculation grooves (on part #s 317222 / 317246)

Airwerks S200SX-E Super Core Features

  • 300-650HP
  • Integrated speed sensor port
  • Forged milled compressor wheel
  • Pre-machined boost port
  • Optimized compressor stage aerodynamics

Application:
  • UNIVERSAL NON APPLICATION SPECIFIC

BorgWarner

BorgWarner S200SX Complete Turbo 177258

Write a Review
Part Number: 177258
MSRP: $964.60
Your Price: $771.68
(You save $192.92 )

Weight:
31.83 LBS
Bearing Housing Material:
Cast Iron
Comp Wheel Inducer (in):
1.81 (46mm)
Comp Wheel OD (in):
2.74
HP Range:
220-580
Turbine Config:
VTF
Turbine Housing A/R:
0.83
Turbine Housing Inlet:
T4 Bolt Pattern / T3 Volute Opening
Turbine Wheel Exducer (in):
2.42 (61mm)
Turbine Wheel OD (in):
2.74 (70mm)
