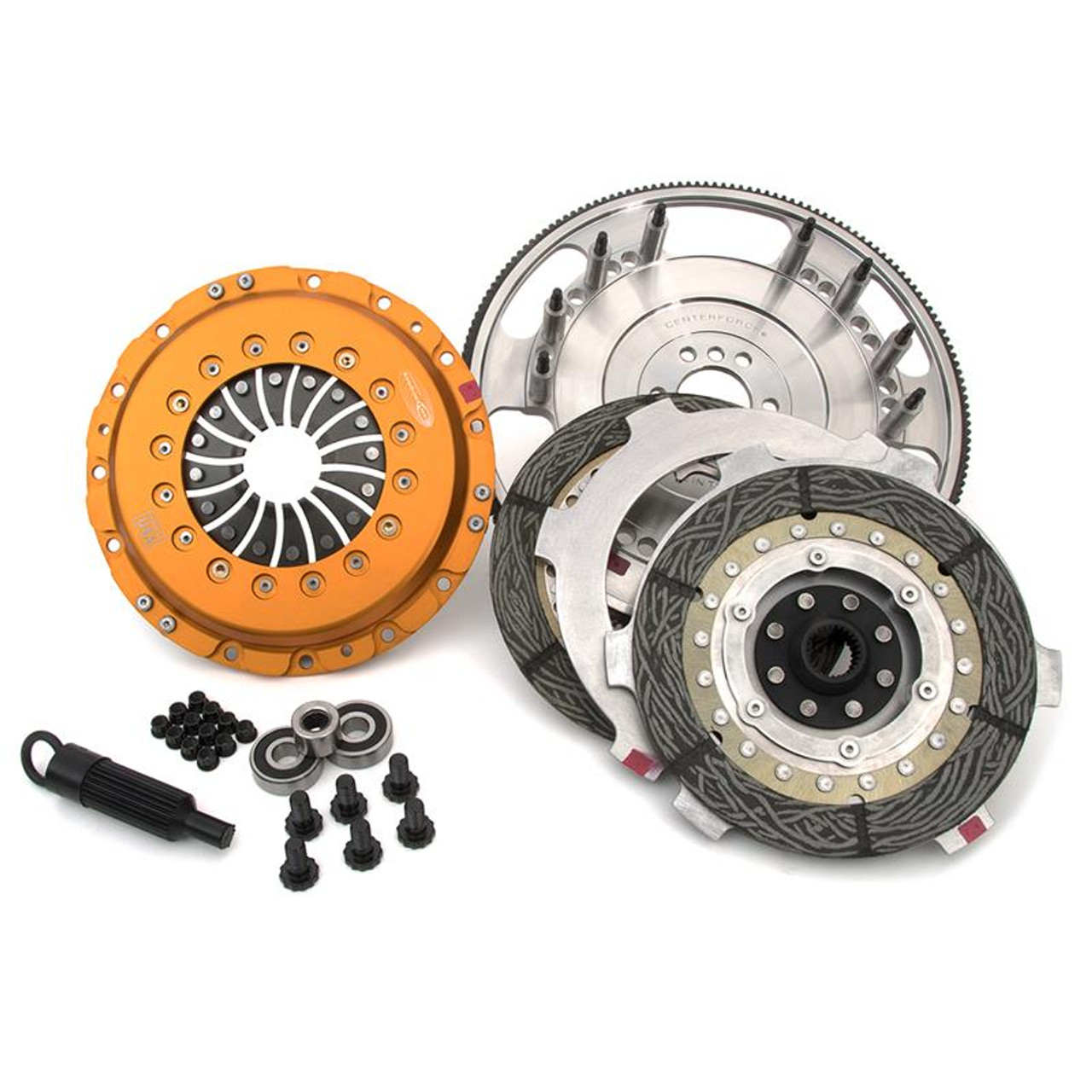

Centerforce Triple Disc Clutch/Flywheel Kit - Incl Pressure Plate, Discs, Floater, Flywheel, Bolts, Alignment Tool, Pilot Bearing 836264042

click to zoom in

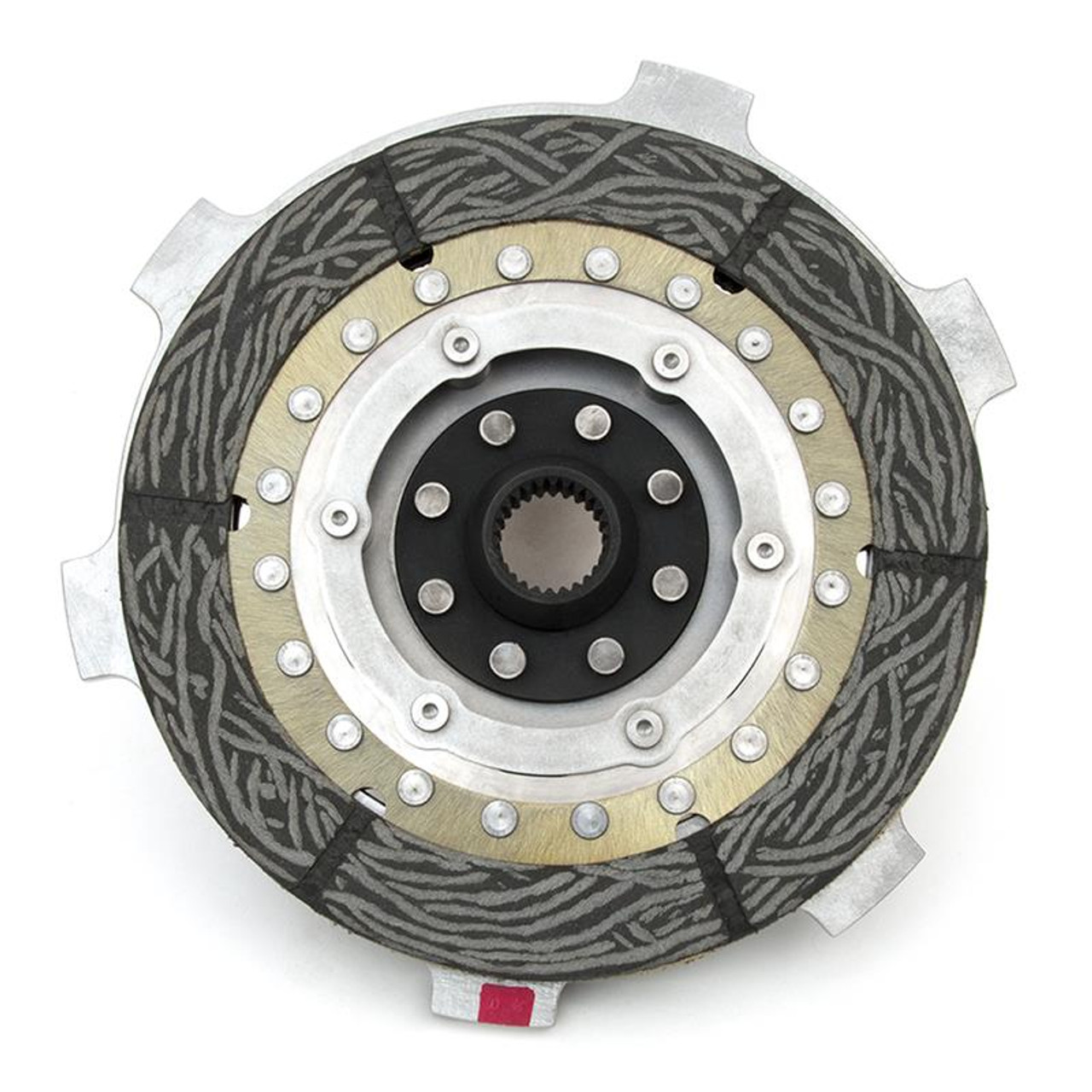

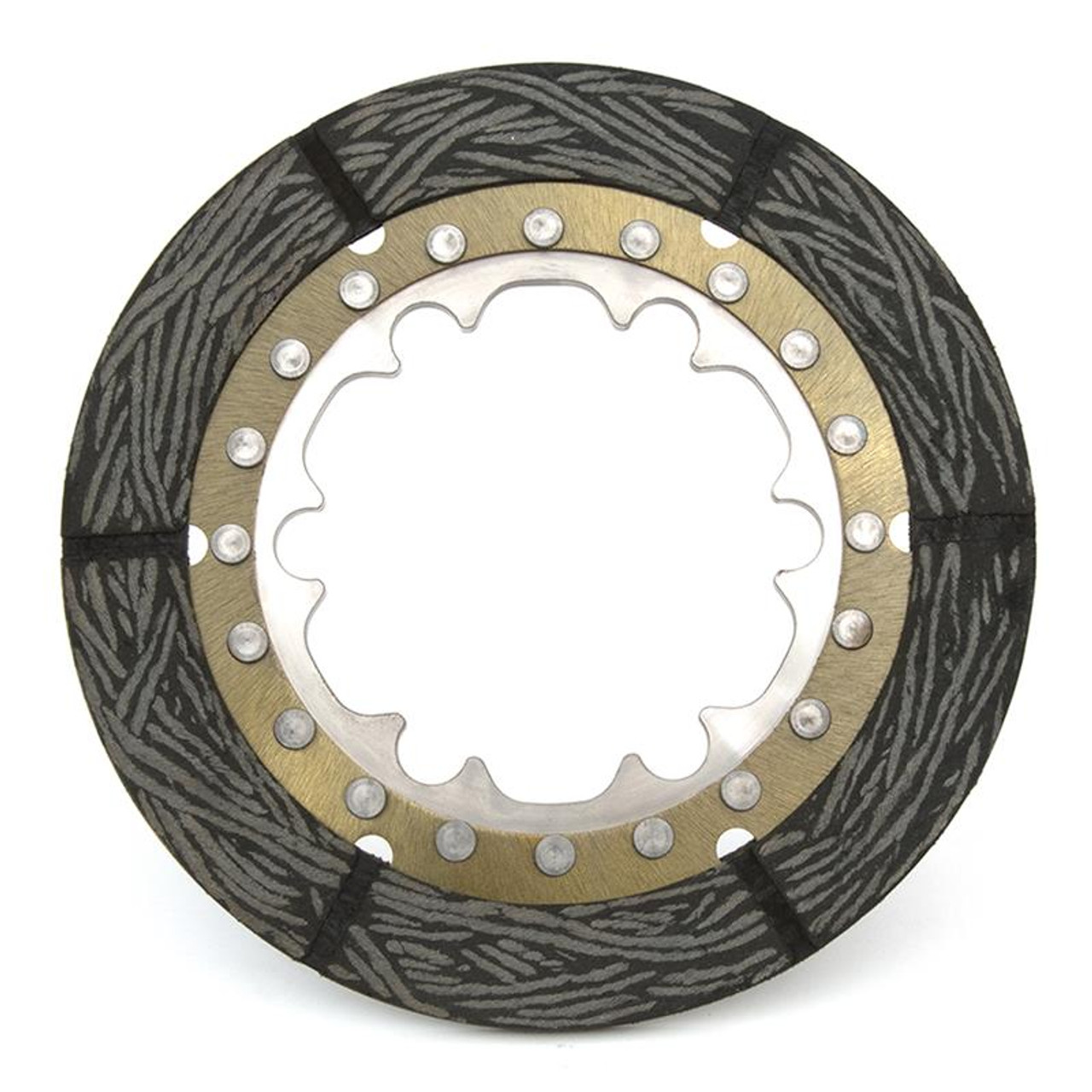

The Centerforce TRIAD DS 8.75” triple disc clutch has been developed for vehicles requiring holding capacity of 500 to 1100 ft/lbs of torque at the crank. The billet pressure plate features our patented centrifugal weight system (where applicable) for superior clamp load and our patented ball bearing actuated pressure plate (where applicable) providing light pedal effort. The disc pack is equipped with organic full facing material providing increased holding capacity and is available in either sprung or solid hub (possible gear noise) depending on the application. TRIAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPMs. Due to the aggressive nature of this race inspired clutch, vehicles may experience some floater noise during operation. Components are made in the USA, match balanced and ready for installation using the included ARP fasteners.;No complicated setup or adjustments required;8.75” Diameter designed to lower inertia for track heavy use;Centrifugally assisted diaphragm to increase holding capacity with RPM;Solid hub design for light weight and quick shifts;Patented multi-disc floating disc and drive disc design;Holds 500 to 1100 ft/lbs of torque at the flywheel;Patented ball bearing pressure plate;Specification card included!;Excellent driver control;Positive drive floater;Precision balanced;ARP fasteners

Centerforce

Centerforce Triple Disc Clutch/Flywheel Kit - Incl Pressure Plate, Discs, Floater, Flywheel, Bolts, Alignment Tool, Pilot Bearing 836264042

Write a Review
Part Number:
836264042
MSRP:
Your Price: $9,999.00
Deal ends in:
Nov 27 2023, 00:00:01


The Centerforce TRIAD DS 8.75” triple disc clutch has been developed for vehicles requiring holding capacity of 500 to 1100 ft/lbs of torque at the crank. The billet pressure plate features our patented centrifugal weight system (where applicable) for superior clamp load and our patented ball bearing actuated pressure plate (where applicable) providing light pedal effort. The disc pack is equipped with organic full facing material providing increased holding capacity and is available in either sprung or solid hub (possible gear noise) depending on the application. TRIAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPMs. Due to the aggressive nature of this race inspired clutch, vehicles may experience some floater noise during operation. Components are made in the USA, match balanced and ready for installation using the included ARP fasteners.;No complicated setup or adjustments required;8.75” Diameter designed to lower inertia for track heavy use;Centrifugally assisted diaphragm to increase holding capacity with RPM;Solid hub design for light weight and quick shifts;Patented multi-disc floating disc and drive disc design;Holds 500 to 1100 ft/lbs of torque at the flywheel;Patented ball bearing pressure plate;Specification card included!;Excellent driver control;Positive drive floater;Precision balanced;ARP fasteners
Weight:
36.85 LBS
Size:
8.75in
Spline Count:
26 Spline By 1 1/8in
Product Group:
Centerforce Clutch Kit - TRIAD DS
