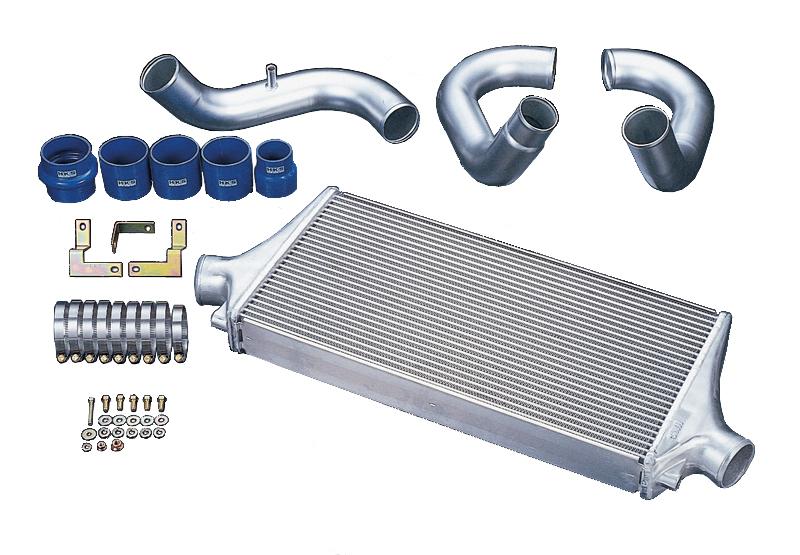

HKS Intercooler Kits are application specific upgrade kits for factory intercooled turbocharged vehicles. Designed specifically for each application;intercooler width, height, thickness and placement are calculated for maximum efficiency and performance. All necessary silicone hoses, brackets, hardware and fittings are included for a complete bolt-on installation. Most application specific HKS Intercooler systems and upgrade kits are CARB exempt (CARB E.O. #D-186-21).

HKS S-Type Intercooler Kits
HKS S-Type intercooler kits are front mount units utilizing either a 600mm X 301mm X 65mm core or a 600mm X 244mm X 65mm core. The larger core is efficient up to 450HP and the smaller core to 400HP. All S-Types utilize a multiple loop shape on the outer fins and a straight through design on the inner fins;allowing the pressurized air to quickly pass through.

HKS R-Type Intercooler Kits
HKS R-Type intercooler kits are large front mount units that offer the ultimate in cooling capacity. R-Type intercoolers have been engineered to maintain efficiency on applications rated up to 800HP. Measuring 600mm X 302mm in frontal surface area, R-Type front mount intercooler kits maximize cooling efficiency. The 97mm thickness of the core allows for unrestricted internal airflow of pressurized air without affecting external airflow to the radiator. R-Type kits can be used with a stock turbocharger, and are recommended for highly modified turbocharger applications.

Application:

• 2013-2016 SCION FR-S ZN6 Chassis
• 2013-2017 SUBARU BRZ ZC6 Chassis
• 2017-2017 TOYOTA 86 ZN6 Chassis
