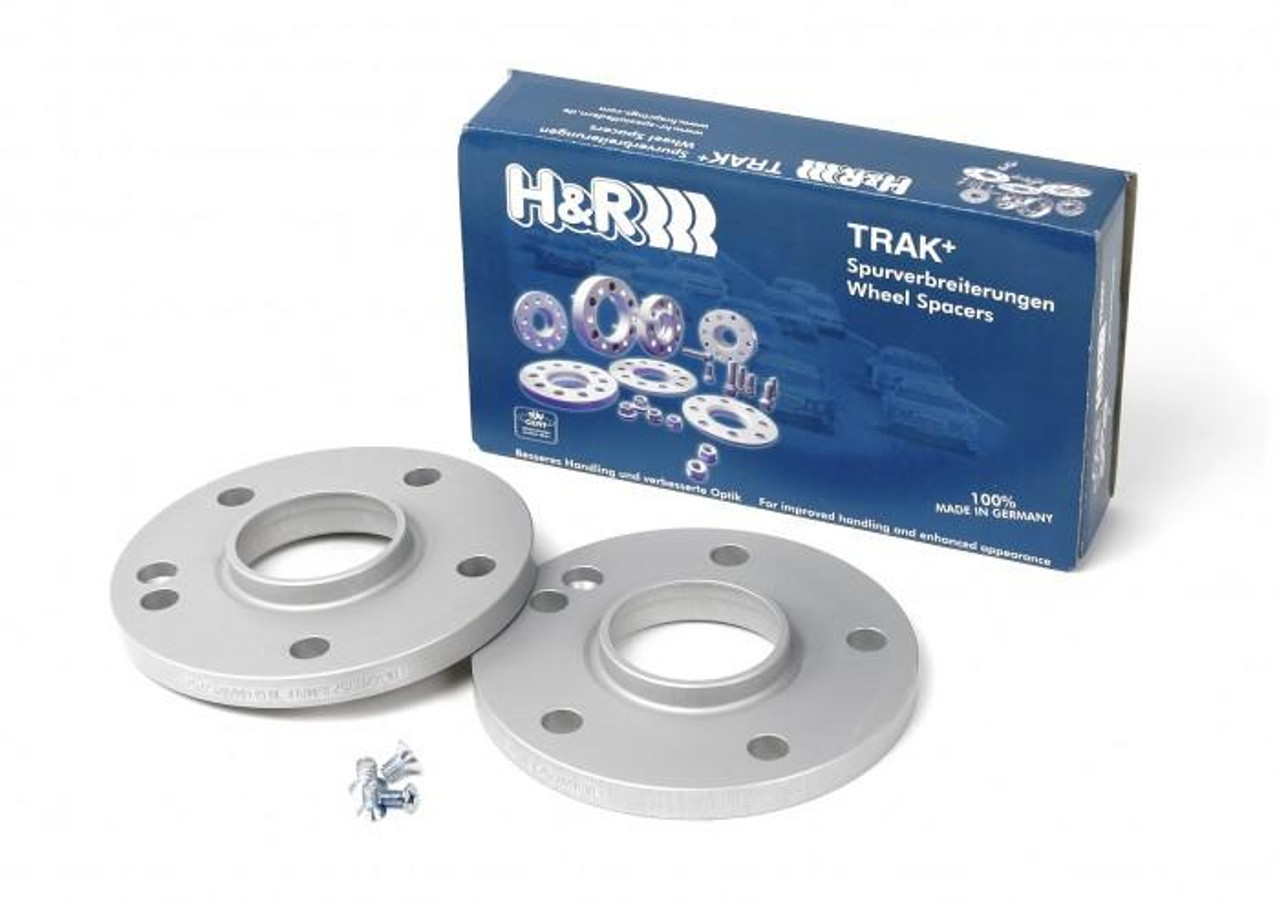

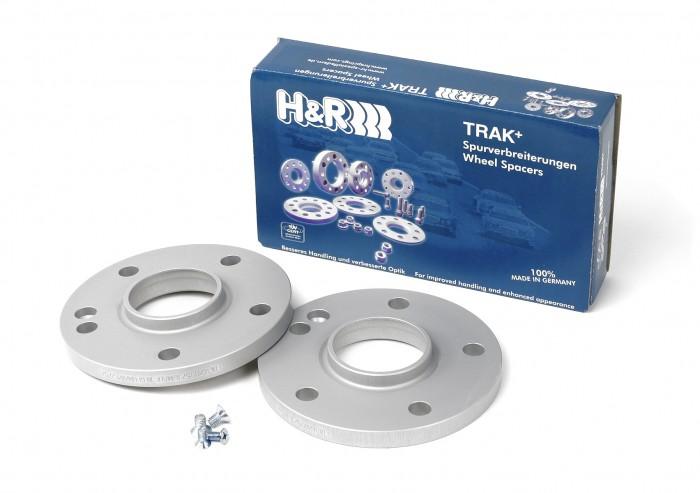

H&R TRAK+ Wheel Adapter - Adapts Audi/VW wheels (5/100 - 57.1 CB) - Sold as Pair 40625601

click to zoom in

TRAK+ Spacers
If you’ve ever seen a sleek, European sedan with that oh-so-low street stance and a bulging wheel / tire combo that fits perfectly in the wheel wells, chances are that car was fitted with H&R TRAK+ Wheel Spacers. TRAK+ Wheel Spacers make your existing tires and wheels appear wider by moving the wheel out from the hub, providing both performance and appearance improvements. Whether you want improved handling, increased safety or simply desire your car to make a statement about your individual style, TRAK+ Wheel Spacers can help you accomplish your goal.

TRAK+ Adapters
Adapt wheels with a different bolt pattern. Available in thicknesses ranging from 20mm to 25mm, H&R TRAK+ Wheel Adapters change a vehicle’s bolt pattern so that wheels from a different vehicle make or model may be fitted.

Similar to H&R TRAK+ DRM Series Wheel Spacers, H&R’s TRAK+ Wheel Adapters are hubcentric spacers and fit to the vehicle hub just as a normal TRAK+ Wheel Spacer would. Once fitted however, H&R TRAK+ Wheel Adapters feature a different bolt pattern on the wheel side of the spacer allowing for non-standard bolt pattern wheel fitment.

Variations

  • DR Series (10 – 40 mm track widening)
    DR Series spacers fit between the wheel and hub, and require longer wheel bolts (ordered separately). Please verify bolt specifics before ordering (taper or round bolt head and shaft length). All DR-Systems require longer wheel bolts. These must be ordered separately.

  • DRS Series (10 – 40 mm track widening)
    DRS Series spacers fit between the wheel and hub, and require exchanging the existing wheel studs for longer ones (included).
  • DRA Series (40 – 60 mm track widening)
    DRA Series spacers bolt to the hub with special wheel bolts (included) and provide new threaded holes for wheel bolts.
  • DRM Series (40 – 90 mm track widening)
    DRM Series spacers bolt to the hub with existing wheel studs and special nuts (included). Wheel is bolted to new DRM wheel studs.

Features

  • Hubcentric
  • Maximizes vehicle track width for great looks, lowered roll center, and increased lateral stability – improved handling
  • Made of a proprietary aluminum/magnesium alloy (Up to 70% lighter than a comparable steel product)
  • Hard anodized to ensure a tough, durable finish
  • Great for use in winter with snow tires and wheels

WHEN ORDERING WHEEL BOLTS, PLEASE FOLLOW THESE GUIDELINES
a) If possible, name the brand of wheel.

b) New bolts must be longer than the original bolts by the width of the wheel spacer used.

c) The bolt head must be identical to the existing bolt:

  • Taper 60deg – End digit 01
  • Round head for M12/d24 mm, for M14/d28 mm – End digit 02
  • Round head for M12/d26 mm (e.g. OE VAG-wheels) – End digit 03
  • Flat head for Porsche original wheels M14 × 1.5 – End digit 06

d) Safety guidelines
(Minimum number of turns for wheel bolts / nuts):

  • M12 × 1.25 = 8.0 turns = approx. 10 mm of load bearing shaft length
  • M12 × 1.50 = 6.5 turns = approx. 10 mm of load bearing shaft length
  • M12 × 1.75 = 6.5 turns = approx. 12 mm of load bearing shaft length
  • M14 × 1.25 = 9.0 turns = approx. 12mm of load bearing shaft length
  • M14 × 1.50 = 7.5 turns = approx. 12 mm of load bearing shaft length
  • 1/2” UNF = 8.0 turns = approx. 11 mm of load bearing shaft length

Please ensure that the wheel bolts do not damage any part of the brake system (ABS sensors, etc.). Turn the wheel by hand and check clearance on the inside of the hub. The wheel should rotate freely. (Maximum tolerance for some vehicles is only 2mm — i.e. Rear Axle Mercedes).

Applications
  • 1998-2003 LEXUS GS300
  • 2005-2006 LEXUS GS300
  • 2007-2014 LEXUS GS350
  • 1998-2000 LEXUS GS400
  • 2007-2014 LEXUS GS450H
  • 2006-2013 LEXUS IS250 2WD
  • 2006-2013 LEXUS IS250 AWD
  • 2001-2005 LEXUS IS300 BASE
  • 2002-2005 LEXUS IS300 SPORTCROSS
  • 2006-2013 LEXUS IS350
  • 1989-1994 LEXUS LS400
  • 1995-2000 LEXUS LS400
  • 1998-2002 LEXUS RX300
  • 2003-2006 LEXUS RX330
  • 2006-2008 LEXUS RX400H
  • 1991-2000 LEXUS SC300
  • 1991-2000 LEXUS SC400
  • 2001-2004 LEXUS SC430
  • 1992-1996 TOYOTA CAMRY L4

H&R

H&R TRAK+ Wheel Adapter - Adapts Audi/VW wheels (5/100 - 57.1 CB) - Sold as Pair 40625601

Write a Review
Part Number:
40625601
MSRP: $189.50
Your Price: $167.46
(You save $22.04 )
Deal ends in:
Nov 27 2023, 00:00:01


TRAK+ Spacers
If you’ve ever seen a sleek, European sedan with that oh-so-low street stance and a bulging wheel / tire combo that fits perfectly in the wheel wells, chances are that car was fitted with H&R TRAK+ Wheel Spacers. TRAK+ Wheel Spacers make your existing tires and wheels appear wider by moving the wheel out from the hub, providing both performance and appearance improvements. Whether you want improved handling, increased safety or simply desire your car to make a statement about your individual style, TRAK+ Wheel Spacers can help you accomplish your goal.

TRAK+ Adapters
Adapt wheels with a different bolt pattern. Available in thicknesses ranging from 20mm to 25mm, H&R TRAK+ Wheel Adapters change a vehicle’s bolt pattern so that wheels from a different vehicle make or model may be fitted.

Similar to H&R TRAK+ DRM Series Wheel Spacers, H&R’s TRAK+ Wheel Adapters are hubcentric spacers and fit to the vehicle hub just as a normal TRAK+ Wheel Spacer would. Once fitted however, H&R TRAK+ Wheel Adapters feature a different bolt pattern on the wheel side of the spacer allowing for non-standard bolt pattern wheel fitment.

Variations

  • DR Series (10 – 40 mm track widening)
    DR Series spacers fit between the wheel and hub, and require longer wheel bolts (ordered separately). Please verify bolt specifics before ordering (taper or round bolt head and shaft length). All DR-Systems require longer wheel bolts. These must be ordered separately.

  • DRS Series (10 – 40 mm track widening)
    DRS Series spacers fit between the wheel and hub, and require exchanging the existing wheel studs for longer ones (included).
  • DRA Series (40 – 60 mm track widening)
    DRA Series spacers bolt to the hub with special wheel bolts (included) and provide new threaded holes for wheel bolts.
  • DRM Series (40 – 90 mm track widening)
    DRM Series spacers bolt to the hub with existing wheel studs and special nuts (included). Wheel is bolted to new DRM wheel studs.

Features

  • Hubcentric
  • Maximizes vehicle track width for great looks, lowered roll center, and increased lateral stability – improved handling
  • Made of a proprietary aluminum/magnesium alloy (Up to 70% lighter than a comparable steel product)
  • Hard anodized to ensure a tough, durable finish
  • Great for use in winter with snow tires and wheels

WHEN ORDERING WHEEL BOLTS, PLEASE FOLLOW THESE GUIDELINES
a) If possible, name the brand of wheel.

b) New bolts must be longer than the original bolts by the width of the wheel spacer used.

c) The bolt head must be identical to the existing bolt:

  • Taper 60deg – End digit 01
  • Round head for M12/d24 mm, for M14/d28 mm – End digit 02
  • Round head for M12/d26 mm (e.g. OE VAG-wheels) – End digit 03
  • Flat head for Porsche original wheels M14 × 1.5 – End digit 06

d) Safety guidelines
(Minimum number of turns for wheel bolts / nuts):

  • M12 × 1.25 = 8.0 turns = approx. 10 mm of load bearing shaft length
  • M12 × 1.50 = 6.5 turns = approx. 10 mm of load bearing shaft length
  • M12 × 1.75 = 6.5 turns = approx. 12 mm of load bearing shaft length
  • M14 × 1.25 = 9.0 turns = approx. 12mm of load bearing shaft length
  • M14 × 1.50 = 7.5 turns = approx. 12 mm of load bearing shaft length
  • 1/2” UNF = 8.0 turns = approx. 11 mm of load bearing shaft length

Please ensure that the wheel bolts do not damage any part of the brake system (ABS sensors, etc.). Turn the wheel by hand and check clearance on the inside of the hub. The wheel should rotate freely. (Maximum tolerance for some vehicles is only 2mm — i.e. Rear Axle Mercedes).

Applications
  • 1998-2003 LEXUS GS300
  • 2005-2006 LEXUS GS300
  • 2007-2014 LEXUS GS350
  • 1998-2000 LEXUS GS400
  • 2007-2014 LEXUS GS450H
  • 2006-2013 LEXUS IS250 2WD
  • 2006-2013 LEXUS IS250 AWD
  • 2001-2005 LEXUS IS300 BASE
  • 2002-2005 LEXUS IS300 SPORTCROSS
  • 2006-2013 LEXUS IS350
  • 1989-1994 LEXUS LS400
  • 1995-2000 LEXUS LS400
  • 1998-2002 LEXUS RX300
  • 2003-2006 LEXUS RX330
  • 2006-2008 LEXUS RX400H
  • 1991-2000 LEXUS SC300
  • 1991-2000 LEXUS SC400
  • 2001-2004 LEXUS SC430
  • 1992-1996 TOYOTA CAMRY L4
Weight:
5.00 LBS
Adapter Thread:
14X1.5
Car Bolt Pattern:
5/114.3
Car Center Bore:
60.1mm
Car Thread Type:
12x1.5
Width:
20mm
Product Group:
H&R TRAK+ Spacers & Adapters
