If you need to relocate your Oil Filter Moroso offers Remote Oil Filter Mounts to make your life that much easier.
Available as Standard and Large diameter Mounts.

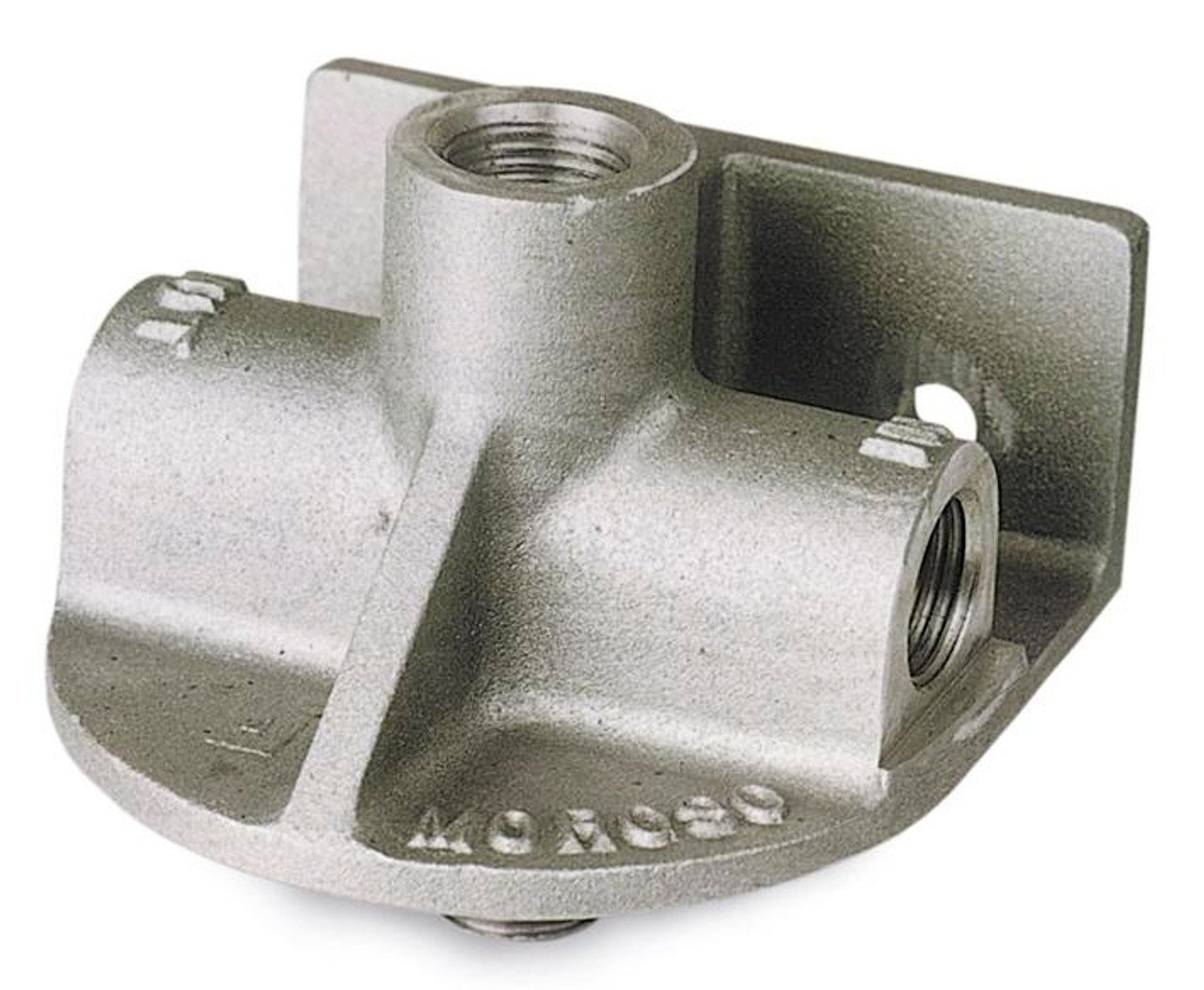

Standard Diameter
- Excellent choice for dry sump oiling systems or wherever installation limitations require a remote mounted filter
- Cast aluminum design tapped for 1/2 NPT inlet and outlet pipe adapters and uses spin-on type oil filters
- Center port available for pressure or temperature gauge plumbing
Large Diameter
- Machined from 6061-T6 billet aluminum for exceptional strength and weight reduction (1.3 lbs without fittings)
- Compact, low-profile design (3/4 body height) facilitates installation in crowded areas;includes two 3/8-16 threaded holes on backside for mounting
- Blue anodized finish resists corrosion and maintains brilliance over time
- Includes two screw-in adapters to accept a wide range of large-diameter filters ibcluding Moroso No. 22465, Fram HP-6, Motorcraft FL 784, STP-43R, (Purolator PER 288/L30288,) (ACPF1054,) and (WIX 51742)
- -12AN inlet and outlet threaded ports are positioned vertically to improve laminar flow
- Accepts -12AN threaded fittings with O-rings;fittings can also be welded in place
Application:
- UNIVERSAL NON APPLICATION SPECIFIC
