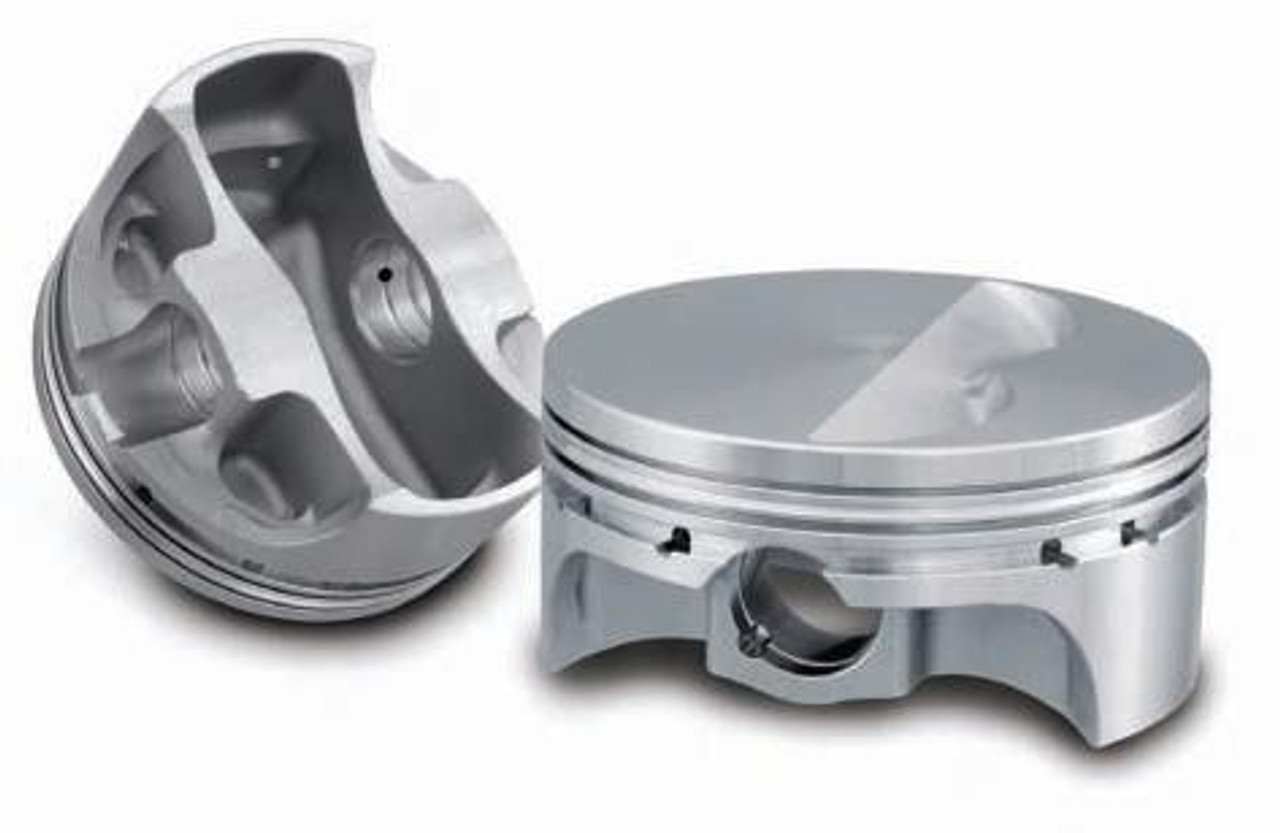

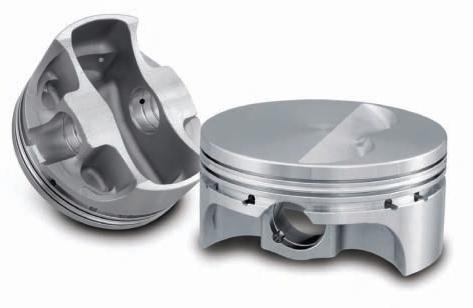

SRP Professional Pistons include features used in professional racing such as lightweight forged side relief (FSR) forgings, high quality wrist pins, and precision CNC machined ring grooves and skirts. In addition, every package includes JE Pro Seal Premium Piston Rings. The included ring set features a 1.2 premium steel top ring, 1.5mm Napier (hooked face) second ring and 3.0mm standard tension oil ring. Every piston is designed and manufactured in the USA at the advanced JE/SRP Pistons manufacturing center.

SRP Professional piston designs were created using 3D computer modeling and tested for strength using Finite Element Analysis (FEA). Several revisions were made to optimize the strength and weight before manufacturing began. Unlike other piston manufacturers, JE/SRP Pistons manufacture billet pistons from solid pucks of aluminum for dyno testing in actual engines prior to approving the final forging designs.

Features

• Advanced, lightweight FSR forging that eliminates stress concentrations for superior strength
• Up to 20% lighter than traditional equivalent
• High-silicon 4032 aluminum alloy for reduced piston-to-wall clearance and quiet operation
• Accumulator grooves for improved ring seal
• Designed for normally aspirated or moderate forced induction/nitrous applications

SRP Professional Pistons are Sold in Matched set of 4, 6 or 8.

Application:

• 1967-1969 CHEVROLET 302 SMALL BLOCK
• 1969-1997 FORD 351 SMALL BLOCK WINDSOR
